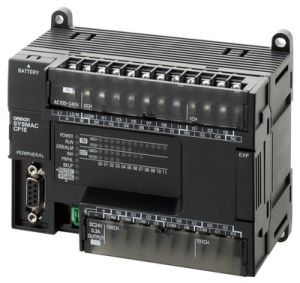

-For Use With – CP1E Series
-Number of I/O – 20
-Manufacturer Series – CP1E
-Number of Inputs – 12
-Input Type – Pulse
-Voltage Category – 85 → 264 V ac
-Output Type – Relay
-Number of Outputs – 8 (Relay)
-Network Type – USB
-Communication Port Type – RS232C, USB 2.0
-Program Capacity – 32 kB
-Programming Interface – Computer
-Maximum Inputs/Outputs – 20
-Output Current – 2 A
-Length – 86mm
-Mounting Type – DIN Rail
-Maximum Operating Temperature – +55°C
-Battery Backup – Yes
-Programming Language Used – Ladder Logic
-Width – 110mm
-Total Memory Available – 32 (Program Memory) kB, 8000 (Data Memory) Words
-Number of Communication – Ports 2
-Scan Time – 0.4 ms
-Depth – 85mm
-Minimum Operating Temperature – 0°C
-Dimensions – 86 x 110 x 85 mm
-Maximum Baud Rate – 115.2 kb
