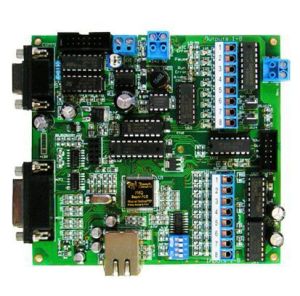

PRODUCT SPECIFICATIONS

– Digital Input: 8 (24V npn)
– Digital Output (peak current):
8 (sink 4A peak, 2A continuous)
– Digital I/O Expansion:
Up to 120 DI, 120 DO
– Analog I/O: 10
– A.I. Interface 8 (0 to 5V, 12-bit)
– A.O. Interface 2 (0-5V or 0-10V)
– PWM (current): 4 (1A x 2, 4A x 2)
– Stepper Motor Controller:
3 (10,000 pps)
– Stepper Motor Drivers: –
– High Speed Counter: 2 (10 KHz)
– RS232 ports: 1
– RS485 port (2-wire): 1
– 14-pin LCD port: 1
– Ethernet Port: 1
– IR Remote Control: –
– Light Dimmer control: –
– Program Flash Memory: 8K words. Expandable to 16K
– Non-volatie FRAM: 11K words with FRAM-RTC Option
– Dimension (L x W x H): 4.825” x 4.45” x 1.0”
(122.6mm x 113.2mm x 25.4mm)
– Operating Temperature: -20 to +85 ℃C
