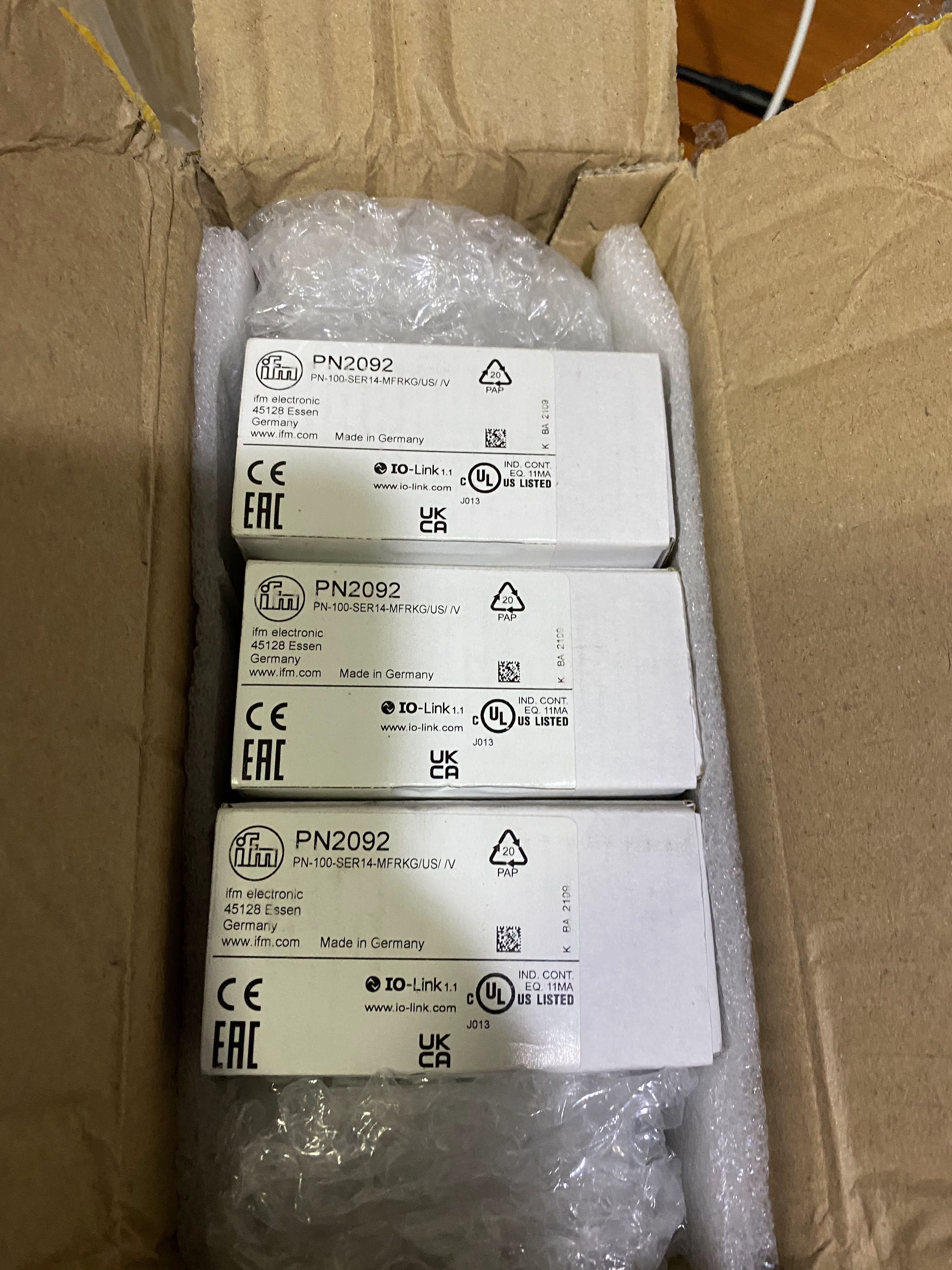

PN2092

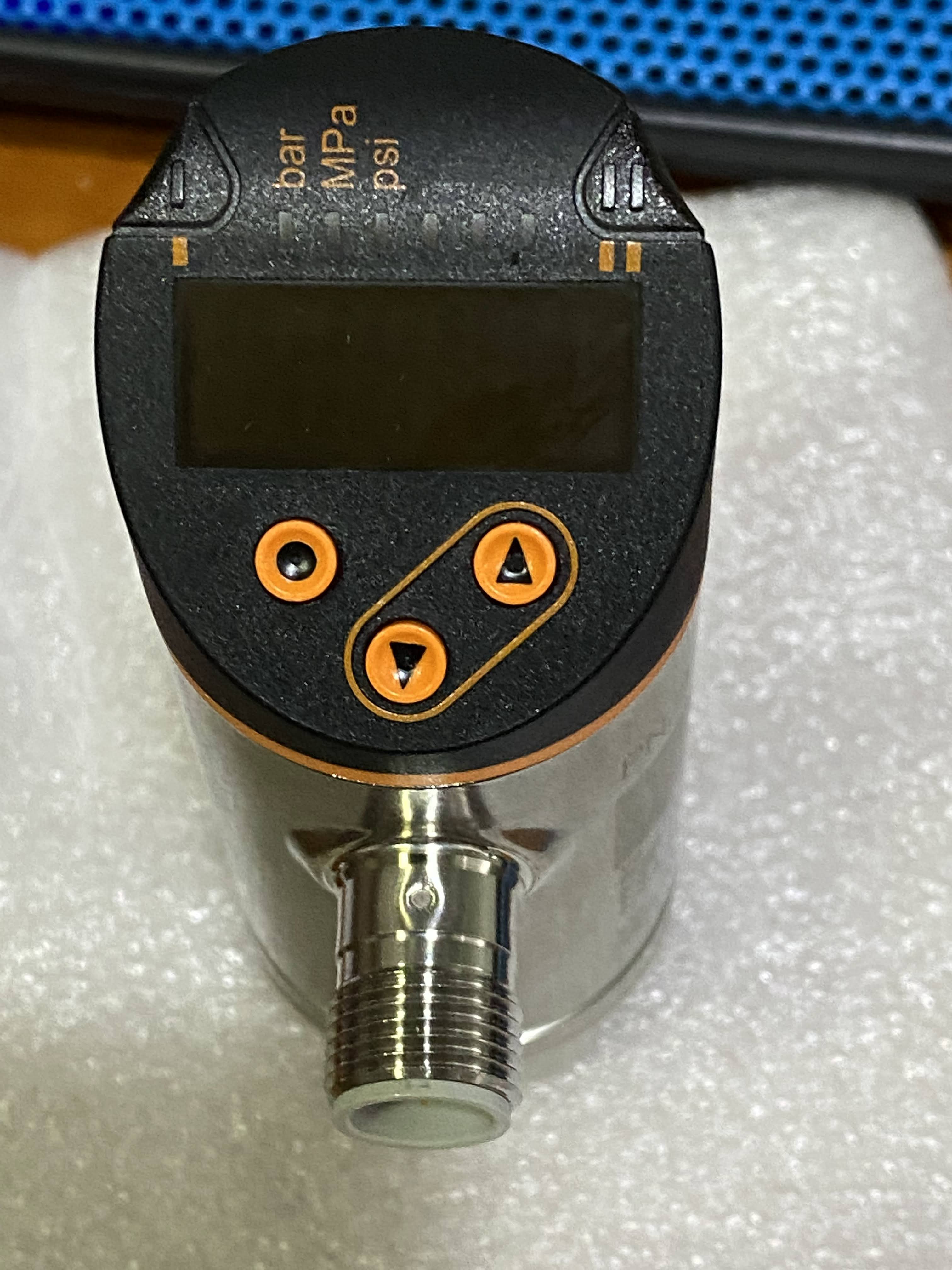

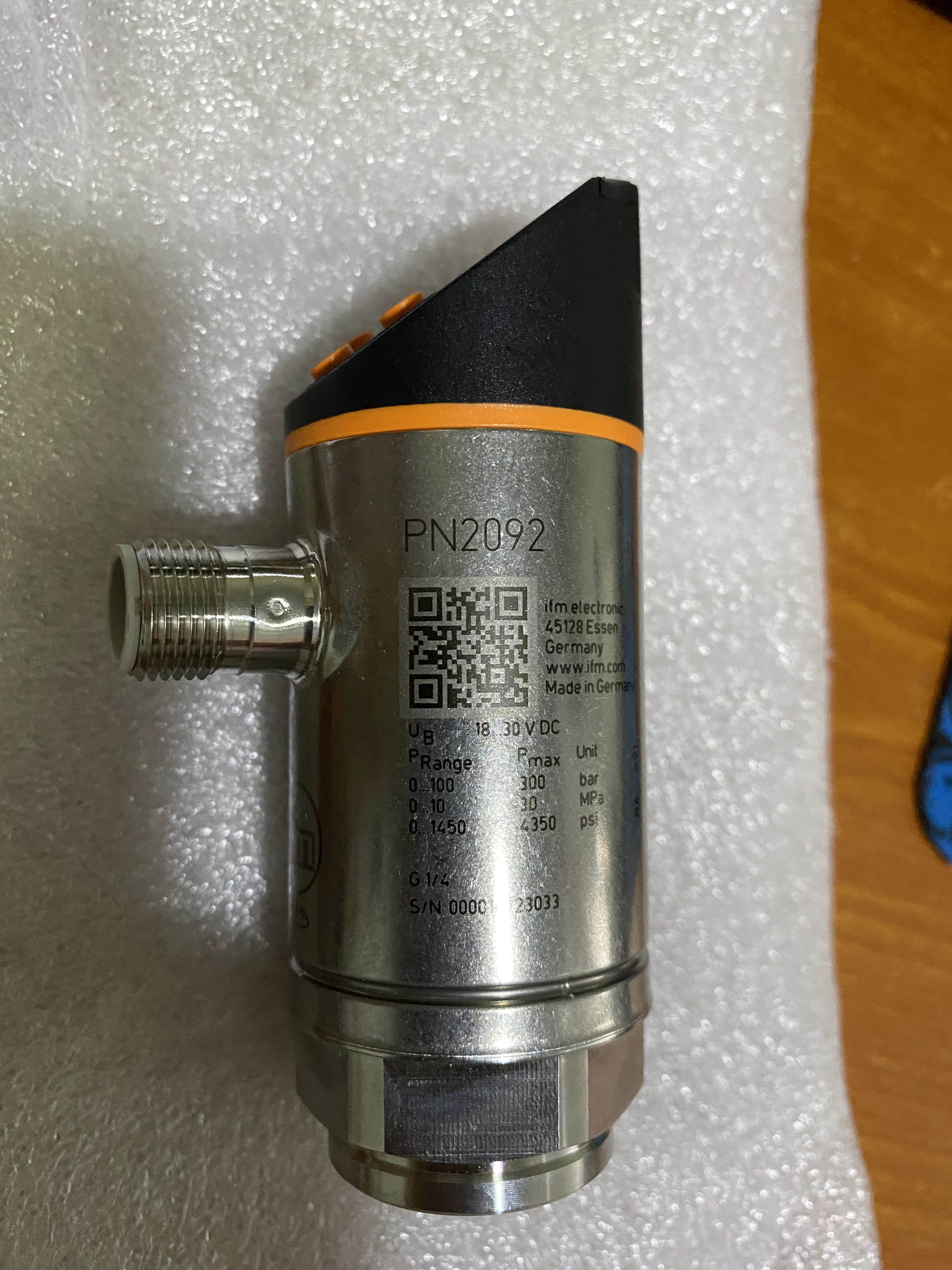

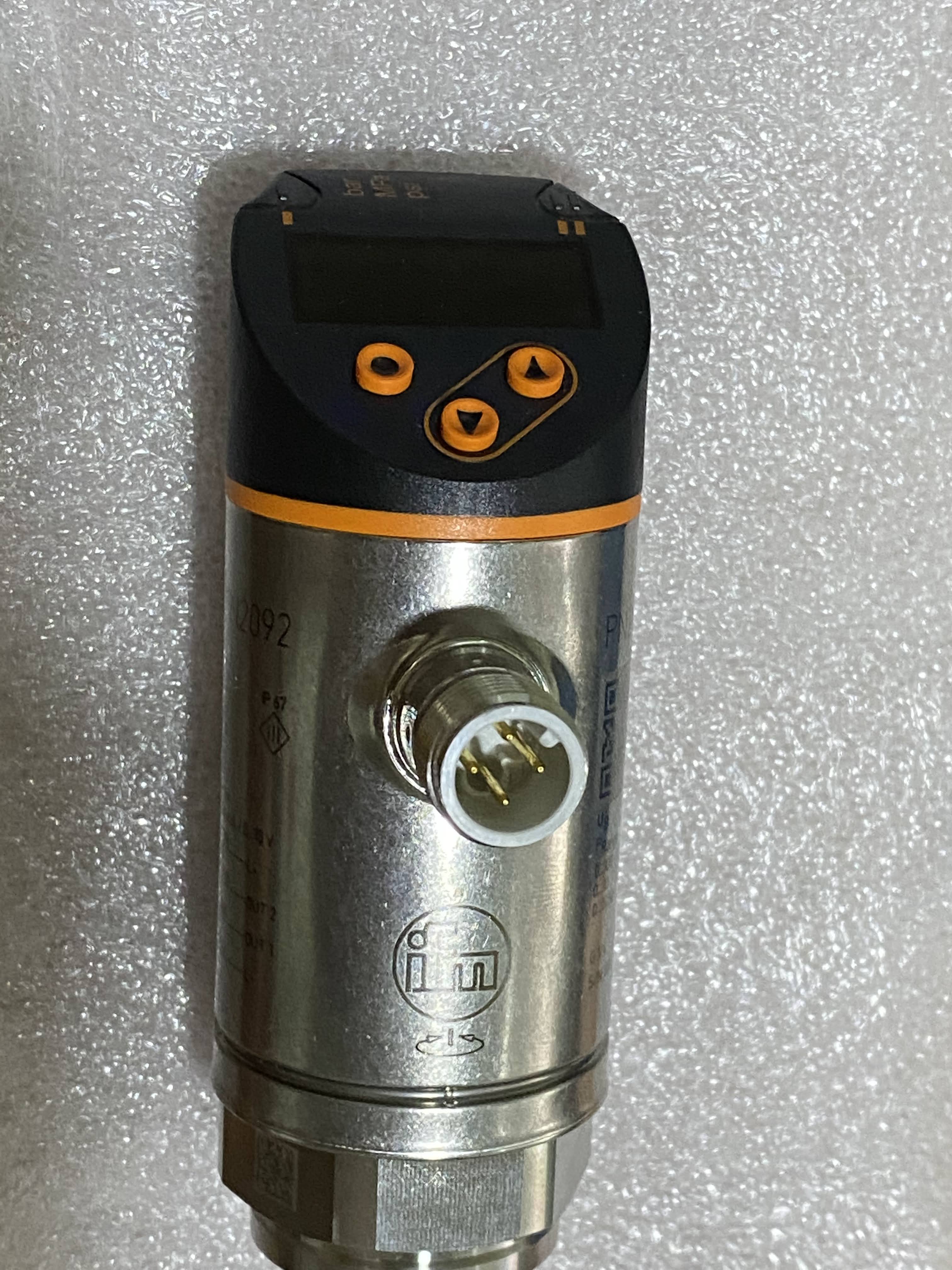

Pressure Sensor With Display

Product characteristics

Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range 0…100 bar 0…1450 psi 0…10 MPa
Process connection threaded connection G 1/4 internal thread (DIN EN ISO 1179-2)

Application
Special feature Gold-plated contacts
Measuring element ceramic-capacitive pressure measuring cell
Application for industrial applications
Media Liquids
Conditionally suitable for use in gases at pressures > 25 bar only on request
Medium temperature [°C] -25…80
Min. bursting pressure 650 bar 9400 psi 65 MPa
Pressure rating 300 bar 4350 psi 30 Mpa
Vacuum resistance [mbar] -1000
Type of pressure relative pressure

Electrical data
Operating voltage [V] 18…30 DC; (to SELV/PELV)
Current consumption [mA] < 35
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 0.3
Integrated watchdog yes

Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
